To be used only on CNC machines and routers with automatic feeding.

Produce super clean, smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut.

Excellent for cutting:

• Plastic/Acrylic

• Acetal and Nylon

• Acrylic Stone

• Acrylonitrile Butadiene Styrene (ABS)

• Aluminum Composite Material (ACM)

• Alupanel®

• Corian

• Cork

• Coroplast®**

• Corrugated Plastics* such as Correx Boards and Polypropylene

• Crosslinked Polyethylene (XPE, PEX, XLPE)

• Delrin

• Dibond®

• Epoxy

• Expanded PVC

• Extruded Acrylic

• Foam Board

• Fomex®

• Gatorfoam®***

• Hard Plastic

• High Density Polyethylene (HDPE)

• High Density Urethane (HDU Board)

• High Impact Polystyrene (HIPS)

• High Impact Polystyrene (HIPS) for digital printing

• High Pressure Laminates (HPL)

• Hydroxy-Terminated Polyether (HTPE)

• King ColorCore® The Multi-Color Engravable Polymer Sheet.

• Laminate

• Low Density Polyethylene (LDPE)

• LubX®

• Lucite®

• Mechanical/Engineered Plastics

• Perspex® Cast Acrylic Sheet

• Plexiglas®

• Poly (methyl methacrylate) (PMMA)

• Polycarbonate (Lexan™)†

• Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)

• Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.

• Polystyrene (PS)

• PVC

• Sign Foam

• Sintra PVC

• Solid Surface

• StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)

• Teflon®

• Thermoplastic Polyolefin (TPO)

• Trespa® Meteon®****

• Ultra High Molecular Weight Polyethylene (UHMWPE)

• Urethane

• Vinyl Flooring

• Wood

*Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.

**A soft plastic cardboard made with super soft super flexible PVC.

***Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.

****Decorative high-pressure compact laminate (HPL) with an integral surface.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of Mirror-Finish:

• Razor sharp cutting edge

• Effortless chip removal

• Helps prevent chip re-welding

• Extends tool life

• Exceptional cut quality

• Dissipates heat well and prevents melting

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

• nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

• Coating prevents high heat and oxidation which is detrimental to cutting tool performance.

• Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

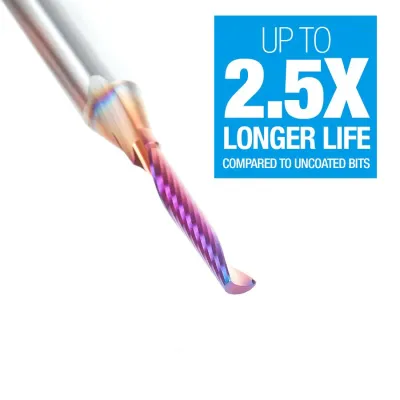

• nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Maximum RPM: 35,000
